Specifications

Uses 65% Less Concrete

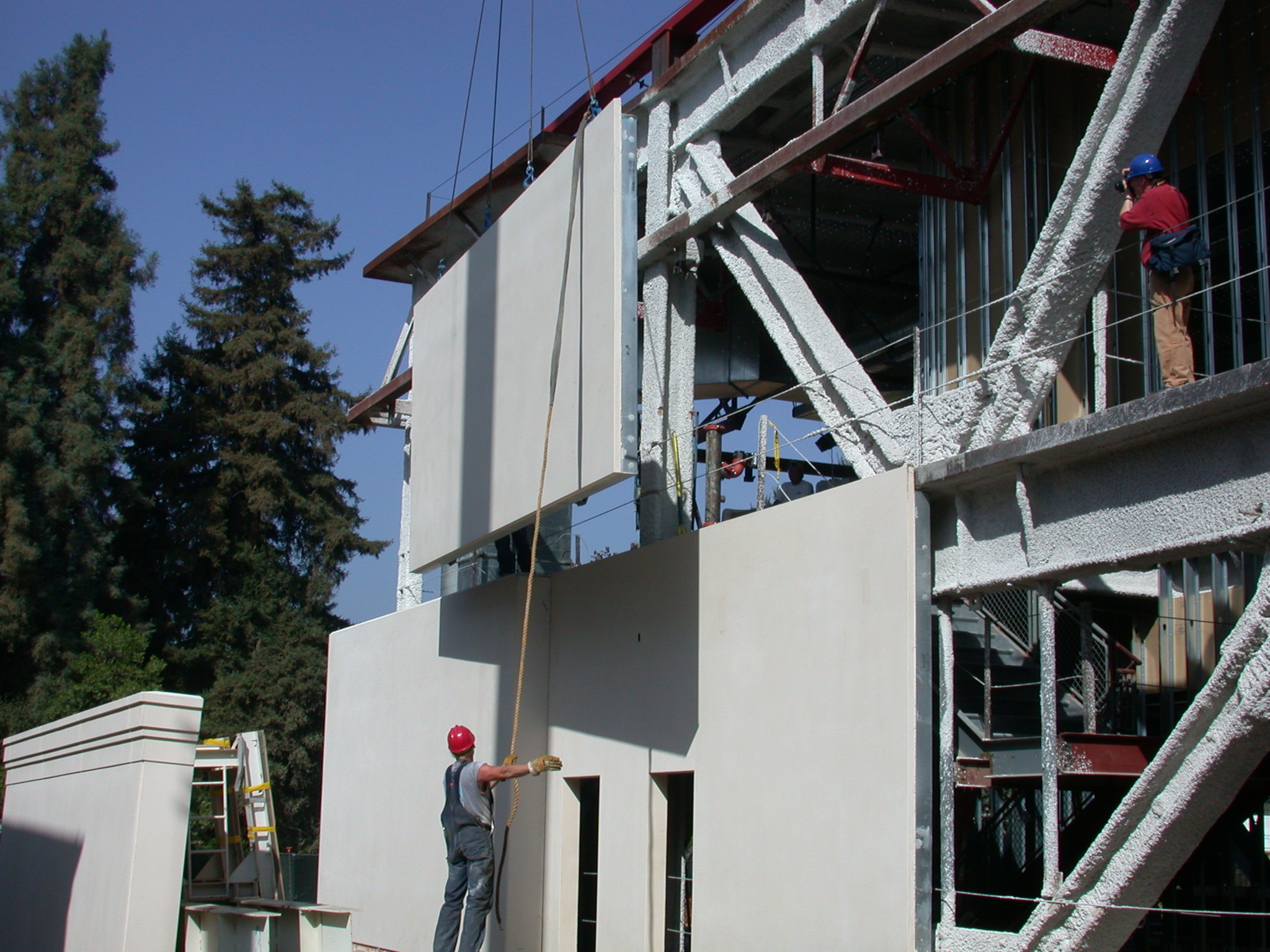

Huntington Library Research Center
THIN CONCRETE DECREASES CONCRETE
Thickness by 4" and panel weight
Lighter Weight Panels
Reduce Loads on Structural System
Eliminate the cost of interior wall furring
Custom Finishes & Textures
Color, Patterns, Etched, Brick
Air Gap Between Concrete and Framing
Creates Thermal Break
Insulation in the stud cavity
Provides for R-7.5 Per Inch
CLICK ON PICTURES BELOW TO SEE MORE DETAILS

Wigwam Skilled Nursing

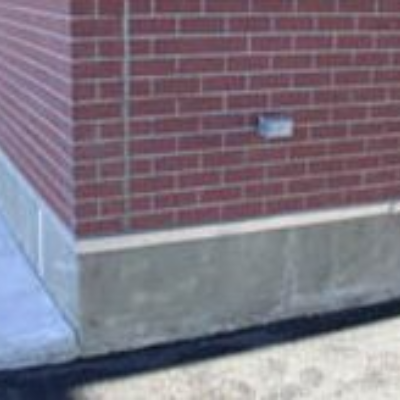

30’ tall 25’ wide MSC panels were site cast using a brick form liner pattern. The panels were attached to a PEMB structural steel frame.

Research and Development
This is a site cast MSC panel project which shows the versatility of the MSC System

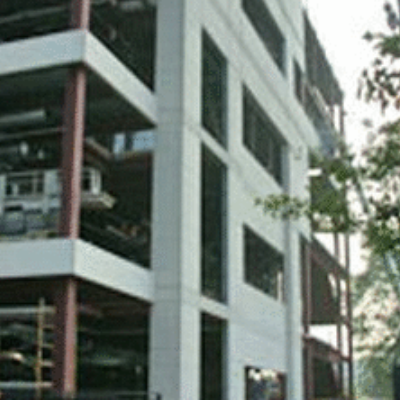

Corporate Center
MSC panels are used as Load Bearing ‘Shear Walls, eliminating any need for another supporting structural steel system.

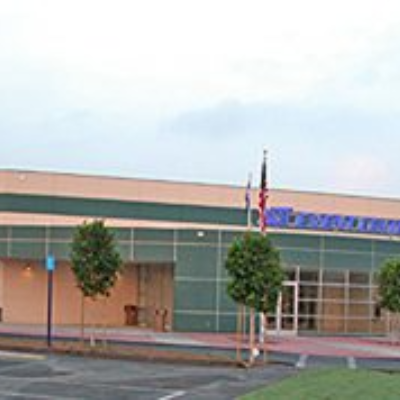

Warehouse / Office

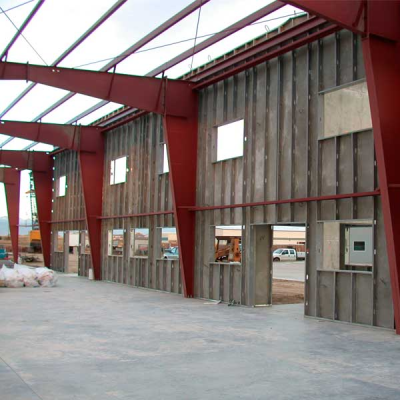

MSC panels are the concrete solution for enclosing a PEMB structural steel frame building.

Sports Arena
The Home Depot Event Center developed by the Anschutz Group.

University
Several Universities have selected MSC panels for their campus buildings.

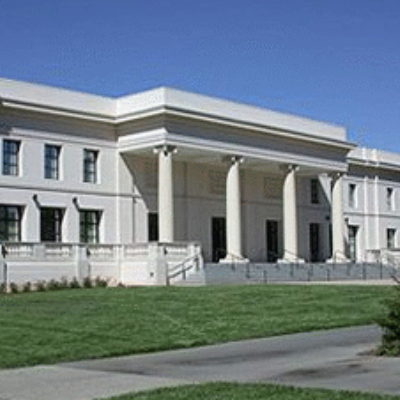

Museum

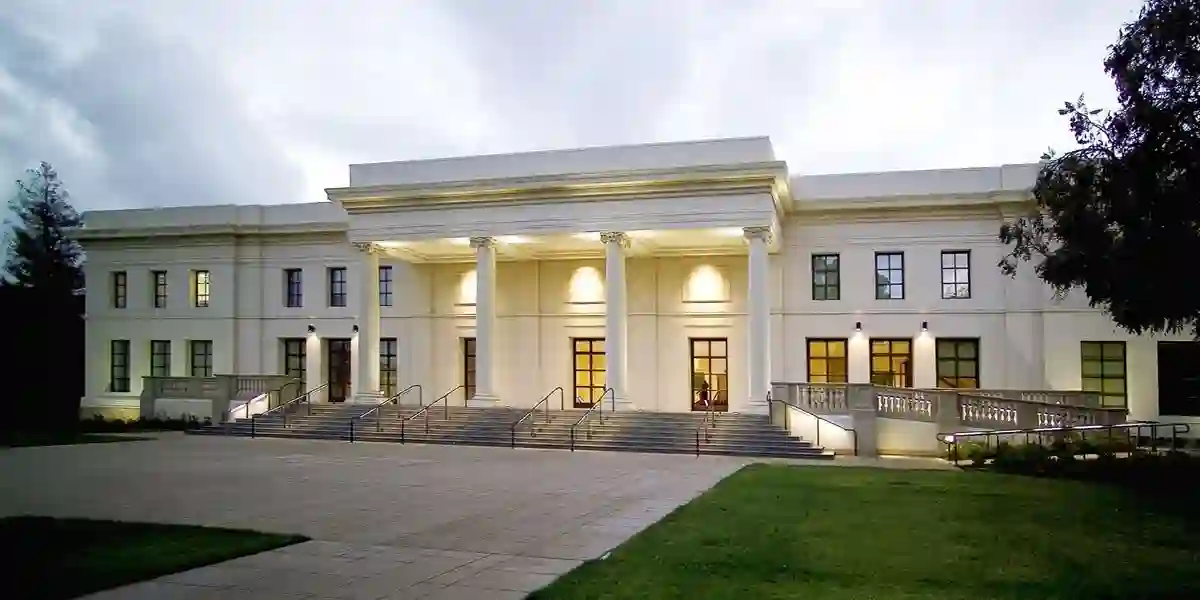

Munger Reaserch Center at the Huntington Library.

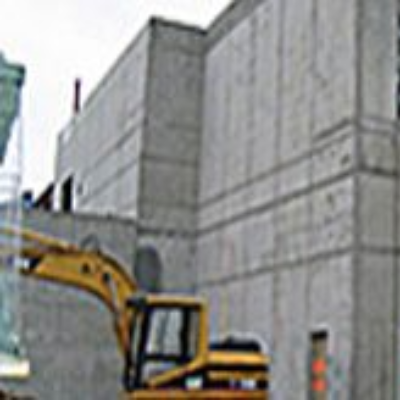

Municipal
MSC panels were used as cladding for this Co-Generation plant.

Why Metal Stud Crete MSC

  • This information will be helpful for Design Builders ,Developers, Architects, General Contractors and Building Owners who are contemplating a cost effective way of using Pre Cast or Site Cast Concrete Panels for the Exterior Design of their new Building.
  • Planning ahead in the type of Concrete Panels you select can decrease the cost of the Superstructure , Footings and Foundation of the Building
  • A Lighter weight Concrete Panel System is the Key to achieving these savings.
  • Metal Stud Crete Load Bearing or Cladding panels weigh between 40 lbs and 45 lbs per Square Foot of Panel area.
  • Conventional 6” or 10” to 12” thick Insulated Sandwich Panels weigh between 80 lbs to 100 lbs per square foot of panel area
  • Structurally Engineered MSC Panels significantly reduce the dead loads on the Buildings components, so the cost of the materials is substantially reduced.
  • Your Buildings Façade Design may be suitable to Panelize with larger MSC Panels, than would be possible using Conventional Pre Cast Panels.. This advantage always produces large cost savings due to less pieces to Fabricate and Erect.
  • With MSC Panels , interior Steel Stud Furring is an integral part of the Composite Panel Design, therefore eliminating the extra cost of interior Wall Furring.
  • Whether it’s a Plant Cast or a Site Cast project, the MSC system can deliver Savings over Traditional or Conventional Concrete Panel System.



ACHIEVE LEED CREDITS

Architectural precast concrete panels by Metal Stud Crete are lighter weight and greener when fabricated with recycled steel and locally extracted materials on site, or in a precast concrete panel plant close to your project. This time-saving architectural concrete wall construction process can be specified in any concrete color or texture.  AVAILABLE NATION WIDE. Click Here For More Information

News

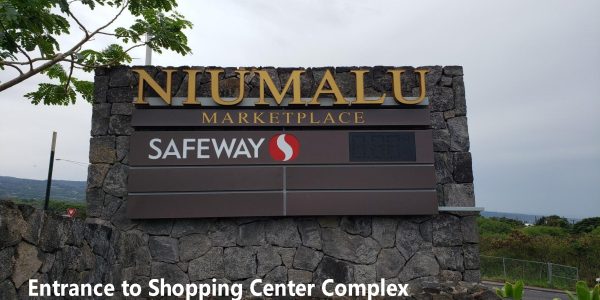

The METAL STUD CRETE  Exterior Wall  System was employed in a recently completed nine Building Shopping Center Complex in Kona Hawaii. Read all about it in the Niumalu Market Place Multi Building Complex.

Metal Stud Crete is a proud member of the US Green Building Council.
